Hardware Overclocking
This chapter will guide you on how to perform hardware modifications to adjust CPU voltage and use a dtbo for overclocking.
Introduction
Glossary
| Term | Explanation |
|---|---|
| dtb | Device Tree Binary |
| dtbo | DTB Overlay |
Summary
The default frequency of the RK3308B is around 1.0GHz. However, according to the manual, the RK3308B can reach 1.3GHz. Can it be overclocked?
The answer is, of course, yes! However, since the CPU voltage of the Sakura Pi RK3308B is set to 1.0V by default, unlocking its full performance requires a hardware voltage modification.
In our extreme testing, we used this method to overclock.
As long as the junction temperature doesn't exceed 140°C, go for it!
After overclocking, both the power consumption and temperature of the RK3308B will increase significantly. It is recommended to use a heatsink.
Hardware Voltage Modification
Reference Circuit

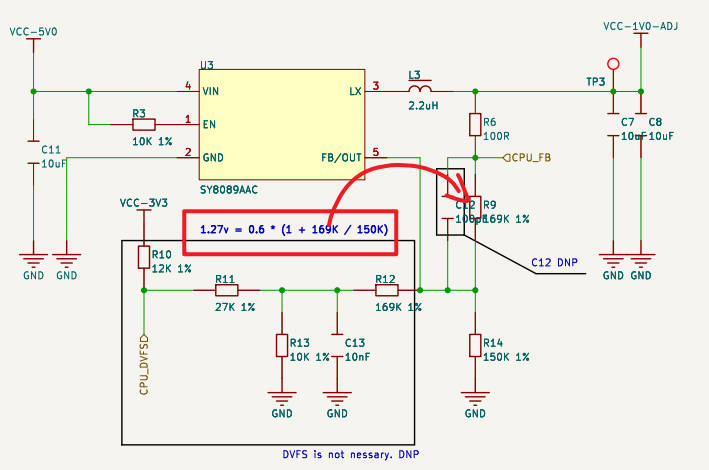

Refer to the schematic of the Sakura Pi RK3308B to locate the buck circuit responsible for the CPU's main power supply.
In the Sakura Pi RK3308B schematic, R9 is designed to be 169K, but in some production batches, it is 100K.
If you measure the voltage at TP3 to be approximately 1.27V, you can skip this step.
Based on the formula:
- 0.6 * (1 + 100 / 150) = 0.99
- 0.6 * (1 + 169 / 150) = 1.27
You can replace the R9 resistor from 100K 1% to 169K 1%, which will increase the voltage from 1.0V to 1.276V.
Replacing the Resistor
Hardware modification requires both courage and precision. If you insist on doing it, take action without hesitation.
However, please note that we do not provide any warranty for hardware damage caused by such modifications. Proceed at your own risk.

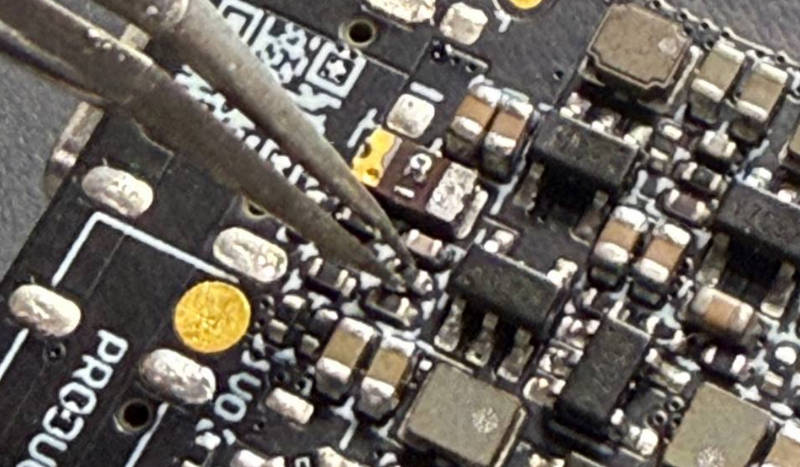

As shown in the image, this resistor is the R9 resistor. Remove and replace it.

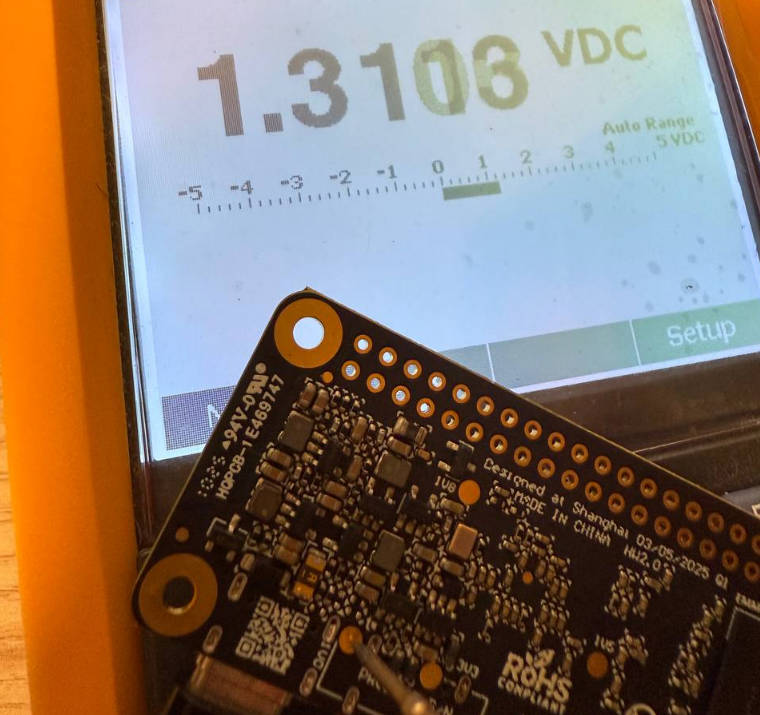

Measuring Voltage and Verification
Configuring the Overclocking dtbo
To ensure the consistency of the overlay_prefix, copy a new file:
$ cp /boot/dtb/rockchip/overlay/[email protected] /boot/dtb/rockchip/overlay/[email protected]
Then, add [email protected] to the overlays line in /boot/armbianEnv.txt.
If the overlays line does not exist, add one at the end of the file.
Reboot and check the u-boot output to ensure it is correct (refer to Configuring dtbo for similar steps).
