Light Up the Onboard WS2812 LEDs

Difficulty Level ★★★☆☆

Chapter Tip

This chapter will guide you on how to light up the onboard WS2812 LEDs using spidev or our kernel driver.

Introduction

Glossary

Term	Explanation
spidev	SPI device

Summary

The Sakura Pi RK3308B comes with 4 compact WS2812 LEDs onboard. They can be used for error warnings, heartbeat indicators, HDD read/write status, or even simple animations.
However, due to the unique protocol of WS2812, Linux has not yet provided an official kernel driver for WS2812. Therefore, we need to manually add support for them.

Protocol Specificity

The specificity refers to the lack of widely used hardware or circuit IP cores specifically designed for WS2812. The SPI's MOSI (Master Out Slave In) can be misused as a programmable waveform generator with the appropriate frequency, making it suitable for driving various protocol timings, even though it was not originally designed for WS2812.

The WS2812's DIN (Data In) is connected to the RK3308B's SPI MOSI interface. To light them up, you only need to write a compliant SPI kernel driver or use Python to output via spidev in user space.

Of course, you can also use your preferred programming language to program spidev and light them up.

WS2812 Communication Protocol

If you want to light it up immediately, skip to the Proprietary Kernel Driver section.

WS2812 uses a simple three-phase serial communication protocol.

TODO: Detailed explanation of the WS2812 protocol specification.

Proprietary Kernel Driver

GitHub Repository

https://github.com/Sakura-Pi/ws2812-vleds

We have written a kernel driver to support WS2812. It uses the device tree to describe the color, position, function, and binding, allowing us to use WS2812 as regular LEDs with simple and flexible features.
This driver can drive not only the onboard WS2812 but also WS2812 LED strips or matrices.

However, note that this driver is not suitable for using WS2812 as a display screen.

Configuring the dtbo

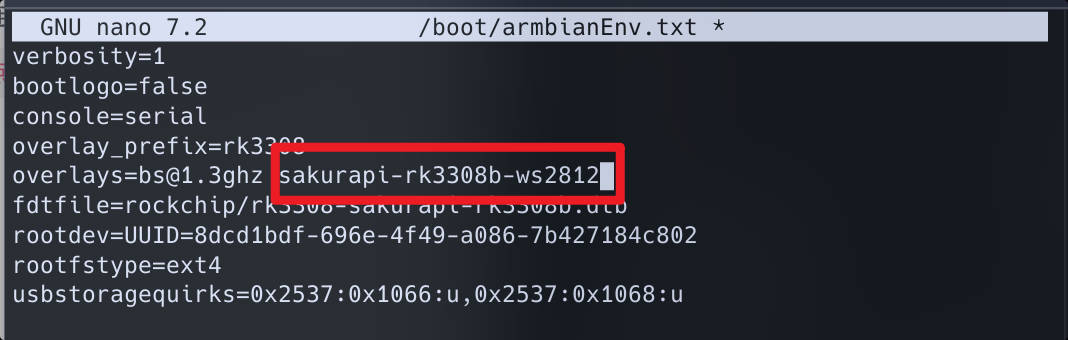

The dtso is located in the Armbian mainline repository and is automatically compiled into dtbo and placed in the /boot/dtb/rockchip/overlay directory by default. If you want to use it directly, add sakurapi-rk3308b-ws2812 to the overlays line in /boot/armbianEnv.txt (add the line if it doesn't exist).

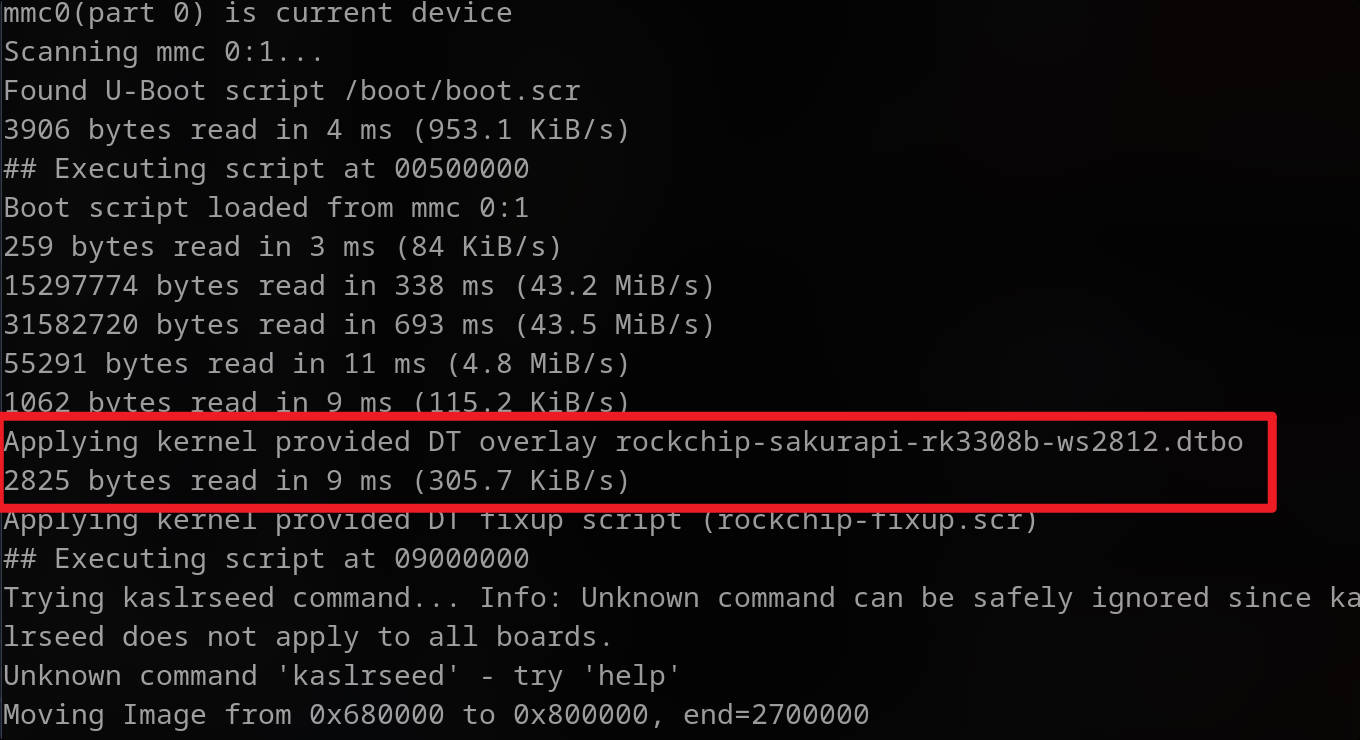

Reboot and check the u-boot output.

If you need to customize the dtso, for this development board, you can write it as follows or refer to:
https://github.com/Sakura-Pi/build/blob/main/patch/kernel/archive/rockchip64-6.14/overlay/rockchip-sakurapi-rk3308b-ws2812.dtso

rockchip-sakurapi-rk3308b-ws2812.dtso

/ {
    fragment@0 {
        target = <&spi1>;
        __overlay__ {

            status = "okay";

            ws2812@0 {
                compatible = "ws2812-vleds";
                reg = <0>;

                // SPI clock speed
                spi-max-frequency = <6750000>;

                leds {

                    // User-defined
                    ws_led3: vled3 {
                        label = "ws-led3";
                        default-state = "off";
                        color-value = "#69b3f2";
                    };

                    // User-defined
                    ws_led2: vled2 {
                        label = "ws-led2";
                        default-state = "off";
                        color-value = "#9376c8";
                    };

                    // User-defined
                    ws_led1: vled1 {
                        label = "ws-led1";
                        default-state = "off";
                        color-value = "#b66bc3";
                    };

                    // User-defined default function mmc1 read/write state
                    // mmc1(emmc) r/w state
                    ws_led0: vled0 {
                        label = "ws-led0";
                        default-state = "on";
                        linux,default-trigger = "mmc1";
                        color-value = "#eb698f";
                    };

                };
            };
        };
    };
};

Compiling the Kernel Driver

Clone the entire Git repository using the command:

git clone https://github.com/Sakura-Pi/ws2812-vleds --depth 1

Enter the ws2812-vleds directory and execute the following commands to configure the driver features:

$ export CONFIG_WS2812_VLEDS=m
$ export CONFIG_WS2812_VLEDS_CHANNEL_CONTROL=y

Here, CONFIG_WS2812_VLEDS=m compiles the driver as a kernel module, and CONFIG_WS2812_VLEDS_CHANNEL_CONTROL=y enables channel control functionality: if this option is enabled, the driver will generate virtual LEDs for red, green, and blue, allowing you to control the WS2812 LED colors directly via command line or scripts.

Next, compile and insmod the module. After that, you can see the WS2812 virtual LED devices using the command:

$ make
make -C /lib/modules/6.12.23-current-rockchip64/build M=/root/ws2812-vleds modules
make[1]: Entering directory '/usr/src/linux-headers-6.12.23-current-rockchip64'
  CC [M]  /root/ws2812-vleds/src/main.o
In file included from /root/ws2812-vleds/src/main.c:12:
  LD [M]  /root/ws2812-vleds/ws2812-vleds.o
  MODPOST /root/ws2812-vleds/Module.symvers
  CC [M]  /root/ws2812-vleds/ws2812-vleds.mod.o
  CC [M]  /root/ws2812-vleds/.module-common.o
  LD [M]  /root/ws2812-vleds/ws2812-vleds.ko
make[1]: Leaving directory '/usr/src/linux-headers-6.12.23-current-rockchip64'

Install the kernel module:
$ sudo insmod ws2812-vleds.ko

# Check devices
$ ls /sys/class/leds/

Notes

If make throws the following error, it means you are missing the linux-headers package.
Without the kernel headers, the kernel module cannot be compiled.

make -C /lib/modules/6.12.20-current-rockchip64/build M=/root/ws2812-vleds modules
make[1]: *** /lib/modules/6.12.20-current-rockchip64/build: No such file or directory. Stop.
make: *** [Makefile:8: all] Error 2

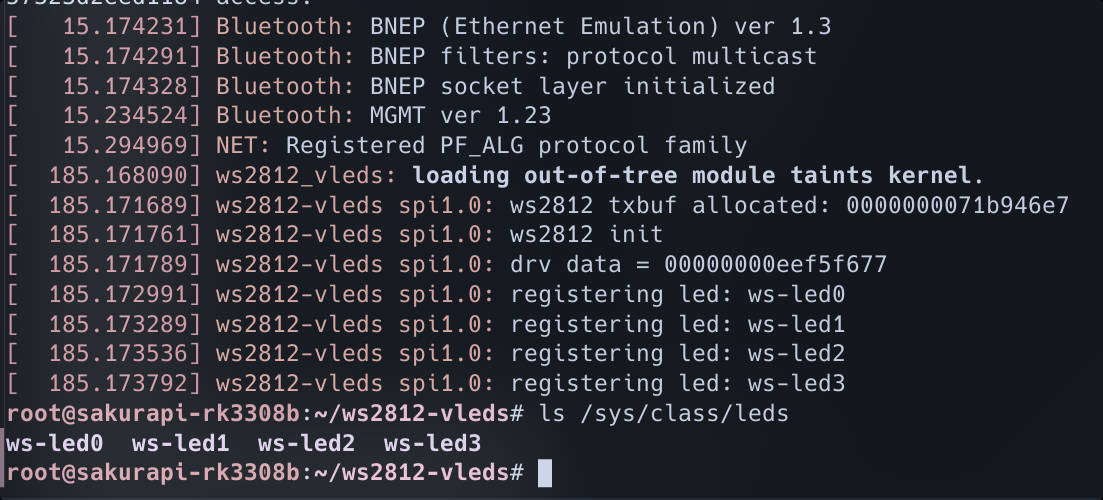

If everything works correctly, it should look like this:

Command Line Testing

Notes

WS2812 LEDs are much brighter than regular LEDs. Be careful not to hurt your eyes.

echo 255 > /sys/class/leds/<your LED device name>/brightness

Using the spidev Driver

TODO

Python examples to be completed.
